DC 7.5-10 Ton Water Chiller

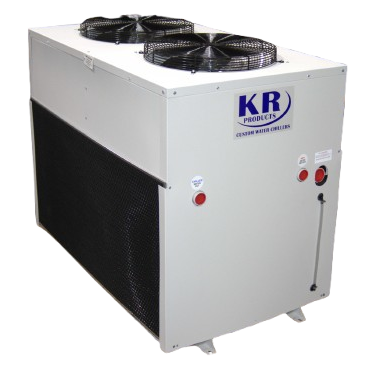

DC 7.5-10 Ton Packaged Chiller with Internal Tank & Pump


Construction Feature                                                                                                  Safety Features

Environmentally Friendly R-10A                                                                              ETL Listed

Low profile design                                                                                                          Low Ambient Fan Cycling

Top Discharge Condenser Exhaust                                                                       Low Pressure Refrigeration Control

Easy Access Electrical Panel                                                                                     High Pressure Refrigeration Control

Insulated Copper Piping                                                                                              Low Water Flow Safety Shut-Off

Stainless Steel Heat Exchanger                                                                              Short Cycling Time Delay

Compressor Crankcase Heater                                                                              Temperature Sensor Failure Protection

G-90 Galvanized Cabinet                                                                                           Water Inline Strainer

All Weather-Tight Components

Non-Corroding Insulated Water Tank                                                                  Options for Custom Designs & Modifications

Water Level Viewing Ports

Water Tank Capacity of 40 Gallons                                                                         Low Pressure By-Pass

Stainless Steel Pump with Ball Valve                                                                     Flooded Condenser With Receiver & Accumulator

24 Volt Digital Temperature Control

Module with On/Off Switch                                                                                       Evaporator Heat Tape Freeze Protection

                                                                                                                                                  High Pressure Pump

                                                                                                                                                  Second Pump Connection

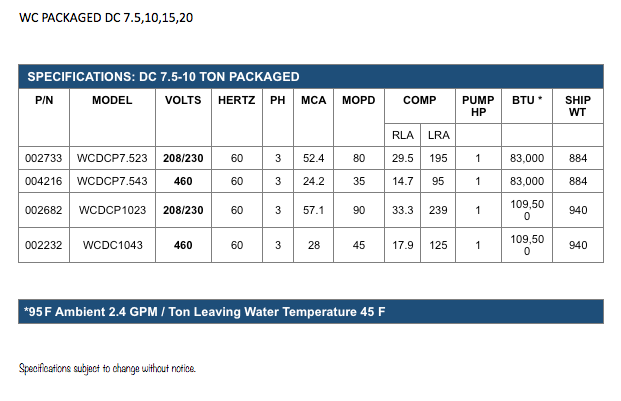

ELECTRICAL SPECIFICATIONS:

DC 7.5-10 Packaged

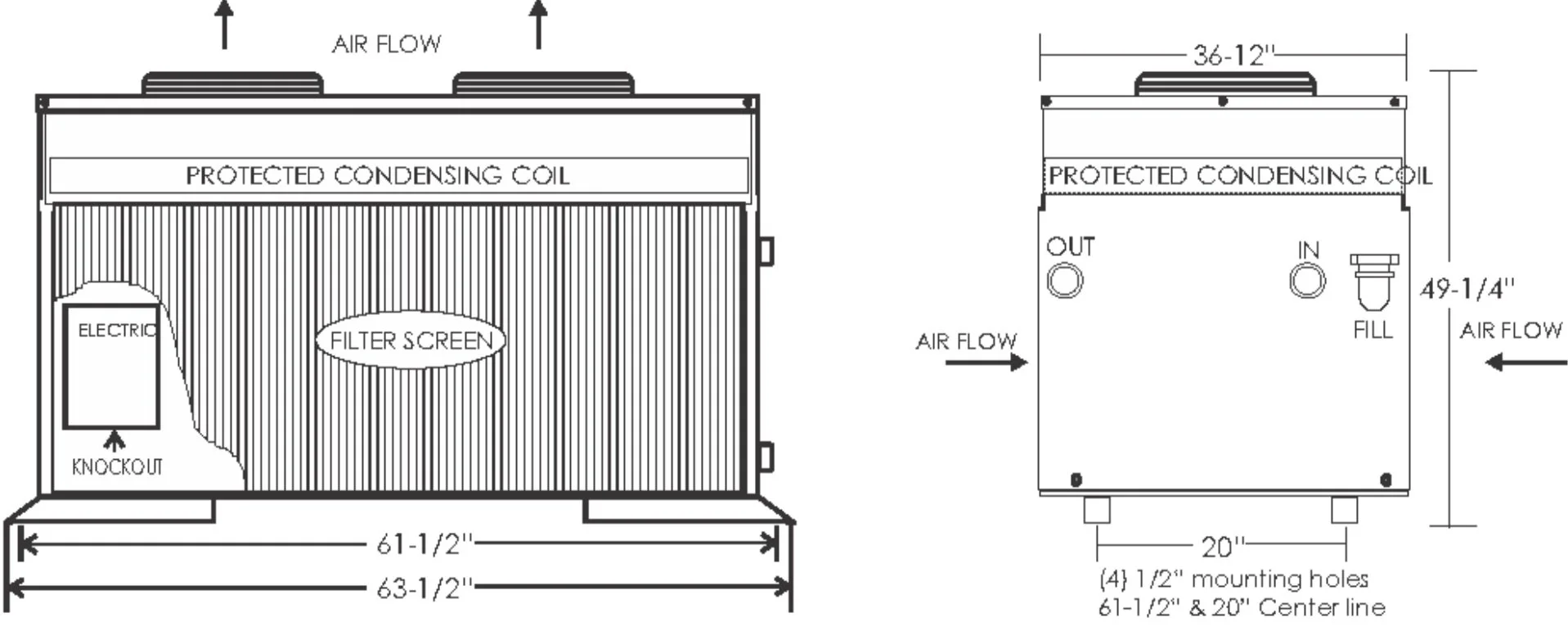

DIMENSIONS:

DC 7.5-10 Packaged



DC 7-10 Ton Water Chiller Manufacturer


FLOW DIAGRAM:

DC 7.5-10 Packaged With OPTIONAL DUAL PUMPS


Flow Diagram Of 7-10 Ton DC Water Chiller
