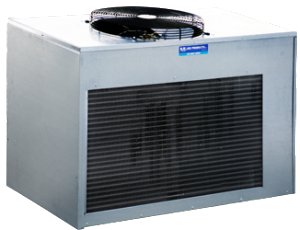

DC 2-5 Ton Packaged Chiller with Internal Tank & Pump


Construction Features

  • Environmentally Friendly R-410a

  • Low profile design

  • Top Discharge Condenser Exhaust

  • Easy Access Electrical Panel

  • Insulated Copper Piping

  • Stainless Steel Heat Exchanger

  • Compressor Crankcase Heater

  • G-90 Galvanized Cabinet

  • All Weather Tight Components

  • Non-Corroding Insulated Water Tank

  • Water Level Viewing Ports

  • Water Tank Capacity of 40 Gallons

  • Stainless Steel Pump with Ball Valve

  • 24 Volt Digital Temperature Control Module with On/Off Switch

Safety Features

  • ETL Listed

  • Low Ambient Fan Cycling

  • Low Pressure Refrigeration Control

  • High Pressure Refrigeration Control

  • Low Water Flow Safety Shut-Off

  • Short Cycling Time Delay

  • Temperature Sensor Failure Protections

  • Inline Water Strainer Provided

Options for Custom Designs

  • Low Pressure By-Pass

  • Flooded Condenser with Receiver and Accumulator

  • Evaporator Heat Tape Freeze Protection

  • High Pressure Pump

  • Second Pump Connection

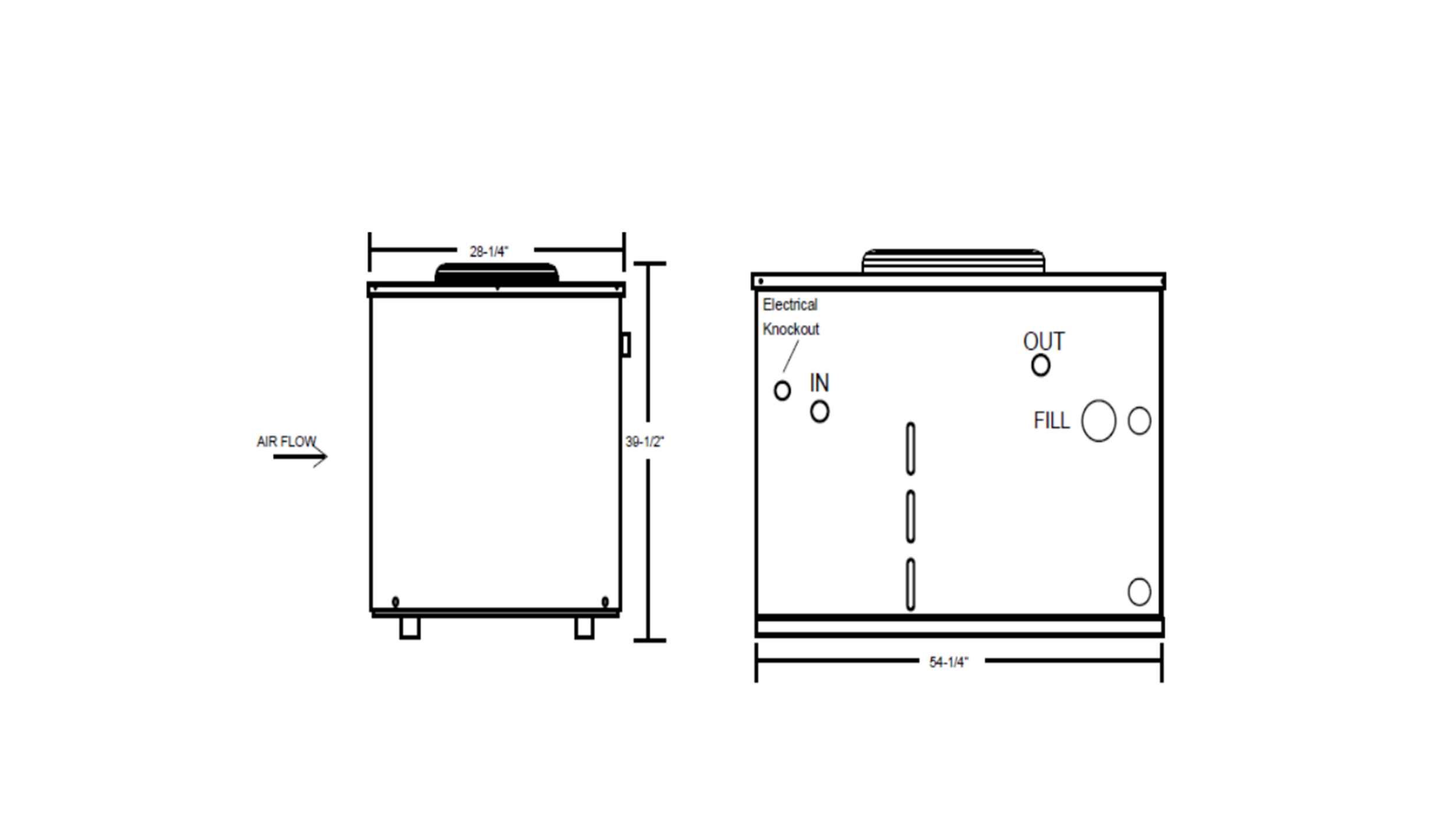

DIMENSIONS: DC 2-5 TON PACKAGED

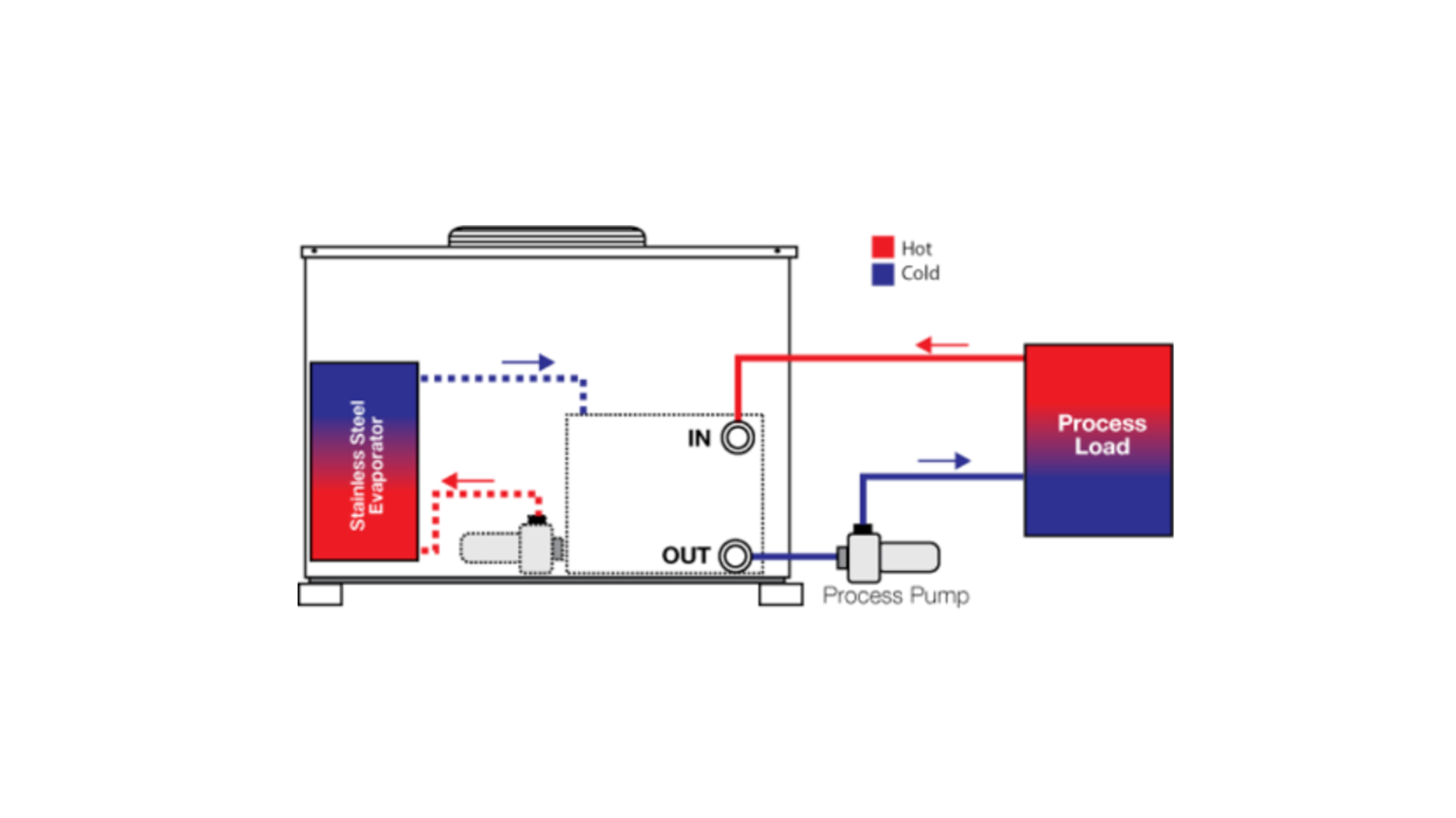

FLOW DIAGRAM:

DC 2-5 Ton Packaged With OPTIONAL EXTERNAL PROCESS PUMP
