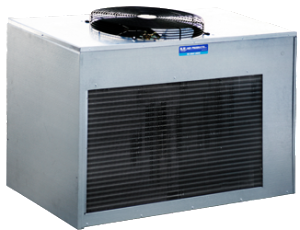

DC 2-5 Ton Refrigeration Water Chiller

Construction Features                                                     Safety Features

Environmentally Friendly R-410A                                 ETL Listed

Low Profile Design                                                                Low Ambient Fan Cycling

Top Discharge Condenser Exhaust                             Low Pressure Refrigeration Control

Easy Access Electrical Panel                                           High Pressure Refrigeration Control

Insulated Copper Piping                                                    Low Water Flow Safety Shut-Off

Stainless Steel Heat Exchanger                                    Short Cycling Time Delay

Compressor Crankcase Heater                                    Temperature Sensor Failure Protection

G-90 Galvanized Cabinet                                                 Water Inline Strainer

All Weather-Tight Components

                                                                                                      Options for Custom Designs & Modifications

                                                                                                      Hot Gas By-Pass

                                                                                                      Low Pressure By-Pass

                                                                                                      looded Condenser With Receiver& Accumulator

                                                                                                      Evaporator Heat Tape Freeze Protection

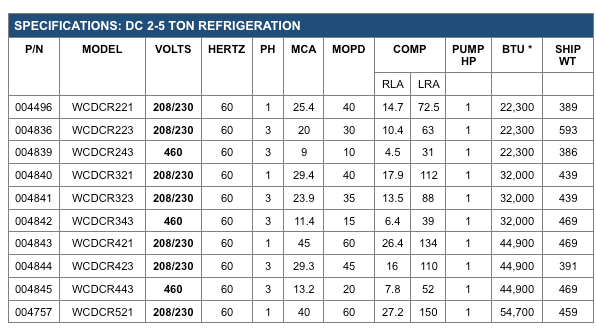

ELECTRICAL SPECIFICATIONS: DC 2–5 Ton Refrigeration


WC REFRIGERATION TS, DC 2-5 .png

DIMENSIONS:

DC 2-5 Ton Refrigeration


FLOW DIAGRAM:

DC 2-5 Ton Refrigeration With Optional Tank And Dual Pumps

Pump Features

  • All Pumps Have Stainless Steel Head And Impellers
  • Process Pumps Ranging From 1 HP To 7.5 HP
  • Chiller Circulating Pumps Ranging From 1 HP To 7.5 HP
  • High Pressure Pumps Available

Water Tank Features

  • Water Tanks Are Manufactured From Linear Polyethylene In One Piece, Seamless Construction
  • These Industrial Tanks Are Designed For Either Indoor Or Outdoor Applications
  • Flat Bottom Design Makes Installation Easy And Cost Efficient
  • Non-Corroding Insulated Water Tank
  • Translucent Tank Wall For Easy Water Level Viewing
  • Water Tank Capacities From 45 to 500 Gallons
  • Bulkhead Fittings Installed On Water Tank For Easy Field Connections
